多片锯生产线MJ1325

产品描述

Characteristics:
1. Adopting the wearproof rubber covered roller to feeding, it can ensure smooth feeding power.
2. As adopting PLC program control, it is simple, time-saving, labor-saving, efficient and stable in operation.
3. When the dustproof cover of this machine is opened, the power supply of the whole machine can be switch off it can ensure the operators to be safety
4. It has the characteristic of ceaseless continuous feeding, and is an ideal choice for production of panel furniture, doors and floors.

特点：
1、采用耐磨胶辊送料,确保畅顺的送料动力,辊面经硬度处理増加使用寿命。
2、采用PLC程序控制具有操作简单,省时、省力、高效、稳定。
3、锯机特有打开防尘罩时,整机即可断电,确保使操作人员得到安全保护。
4、具有不间断连续送料等特点,是板式家具、门业、地板等生产的理想选择。

Vertical Sawing Machine纵向机	Horizontal Sawing Machine横向机
The spindle is bottom saw with lifting and a fully-enclosed protective cover. 主轴为下锯可升降,带全封闭式防护罩	Saw blades are solely installed on the spindle of motor, and the standard number of saw blades is 3 pieces, a fully-enclosed protective cover 锯片单独安装在电机主轴上,标准配置3个,带全封闭式防护罩
Variable-frequency Feeding Speed Governor: 0-12m/min 变频送料调速器:0-12米/分钟	Variable-frequency Feeding Speed Governor: 0-12m/min. 变频送料调速器:0-12米/分钟
Thickness of Processed Roughcast: 5-35mm 加工毛坯板厚:5-35毫米	Max Width and Thickness of Roughcast: 2600mm, 5-35mm 最大入毛坯板宽度,厚度:2600毫米,5-35毫米
Max Width of Roughcast: 1270mm 最大入毛坯板宽度:1270毫米	Two groups of wearproof rubber feeding rollers(8pcs) are respectively arranged at the front and back sides of motor. 电机前后各2组(8条)耐磨胶送料辊
Each three groups of wearproof rubber feeding rollers(12pcs)are arranged at the front and the back sides of spindle. 主軸前后各3组(12条)耐磨胶送料辊	Feeding production line: In total length of 4m, equipped with a variable-frequency feeding speed governor, and an all aluminum alloy framework structure 送料线:总长4米,带变频送料调速器,全铝合金框架机构
Anti-bouncing protector for plate (patented design) is available 板料防反弹保护装置(专利设计)	Enhanced motor support plate 加强型电机托板
One group of upper pressing rollers is arranged above the spindle 主轴上方有一组上压轮

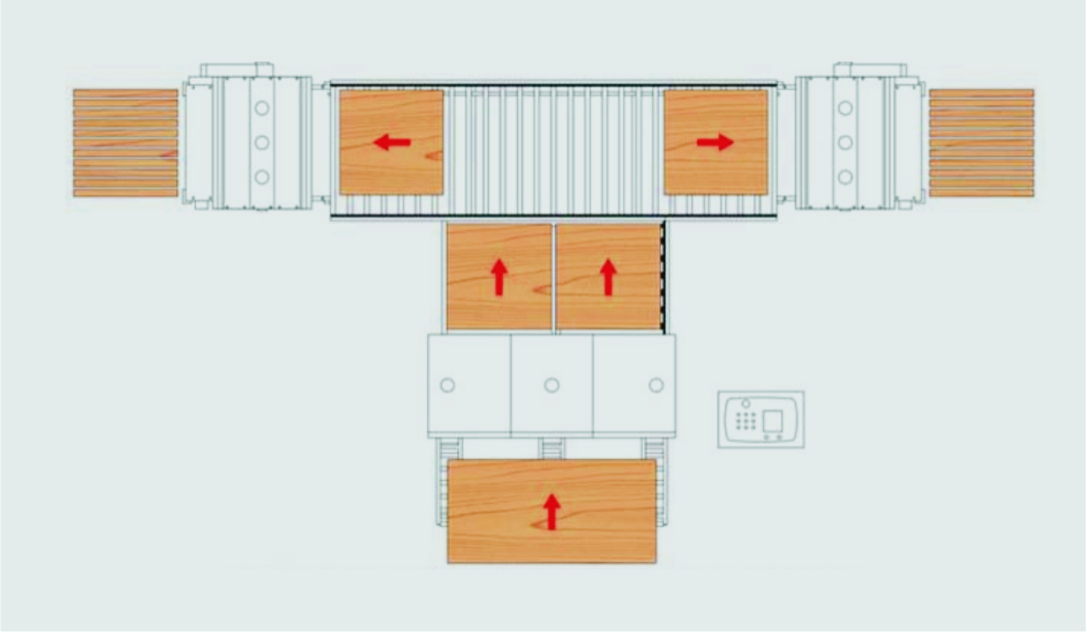

Efficient vertical and horizontal multi-rip saw production line can vertically process one large plate of 2440"1220 into two parts (or three parts) and horizontally process plates at two sides after passing through the efficient conveyor line, and is suitable for processing of wood floor and stress grooves, fixed width cutting of glue laminated boards or wood blanks 高效纵横多片锯生产线可实现把2440×1220的大板材一开为二或一开为三)的纵向加工再经过高效的输送线向两边同时实现橫向加工适应于木地板加工应力槽的加工集成材或木板块毛坯板的定宽开料使用
