产品描述
The spindle is bottom saw with lifting and a fully-enclosed protective cover the digital or manual lifting of spindle andupper pressing frame can be optioned Strenghthened type spindle and axle bed Anti-bouncing protector for plate( Patented Product is available.
主轴为下锯可升降,带全封闭式防护罩;可选择手动或数控升降主轴和上压架;加强型主轴和轴座;板料防反弹保护装置(专利产品)。
Application:

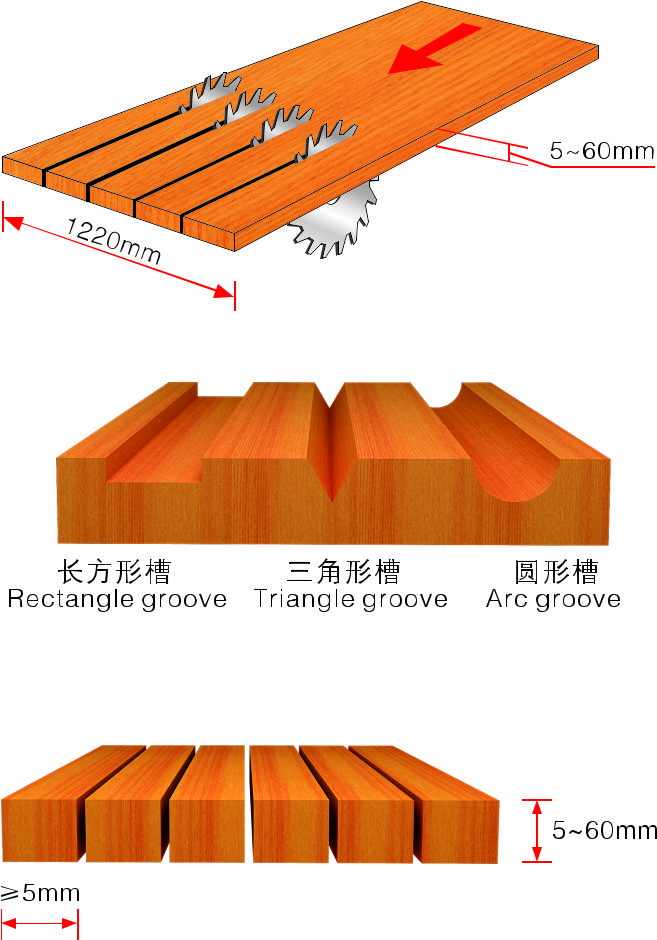

It is used for cutting of density board, composite board, solid wood boards and other large boards grooving on surface of boards in different depths (Door frame boards, photo frames, decorative streak and so on).
适用范围:
密度板、复合板、实木板等大板开料;并可在板面开出不同深度的坑槽。①门框板、相框、装饰线条等)
| Technical paramete技术参数 | |||
|---|---|---|---|
| Width of processed material (mm) 工料宽度(mm) |
最大Max:1220,最小Min:200 | Power of feeding motor(kw) 送料电机功率(kw) |
2.2(able to extend to可增容至3) |
| Thickness of processed roughcast(mm) 加工毛坯板厚度(mm) |
最大Max:60最小Min:5 | Total power of installed motor(kw) 装用电机总功率(kw) |
24.2(able to extend to可增容至40) |
| Min Processing length(mm) 加工最小长度(mm) |
600 | Feeding speed(m/min) 送料速度(m/min) |
0-12 |
| Spindle diameter(mm) 主轴直径(mm) |
90 | Pair number/ number of feeding roller 送料棍组数/条数 |
8/16 |
| Spindle speed (r/min) 主轴转速(r/min) |
2600 | Outer diameter of scrap pipe(mm) 排屑管外径(mm) |
150 |
| Saw blade diameter(mm) 锯片直径(mm) |
270 | Overall dimensions(mm) 外形尺寸(mm) |
2900×1800×1400 |
| Max Number of saw blades(pcs) 锯片安装最大数量(个) |
60 | Weight (kg) 机床重量(kg) |
2800 |
| Power of spindle motor(kw) 主轴电机功率(kw) |
22( able to extend to可增容至37) | ||
