MJS1300-XD3

产品描述

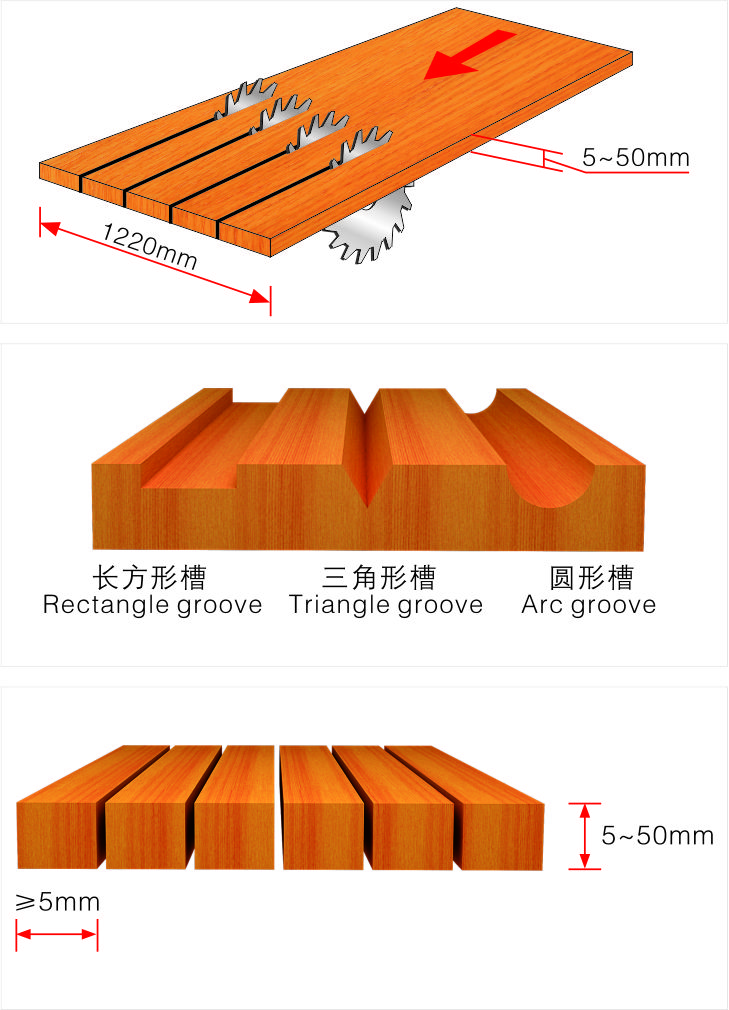

The spindle is bottom saw with lifting and a fully enclosed protective cover; Realize the manual lifting of spindle and upper pressing frame Strenghthened type spindle and axle bed. Anti-bouncing protector for plate(Patented Product)is available.
主轴为下锯可升降带全封闭式防护罩;手动升降主轴和上压架;加强型主轴和轴座;板料防反弹保护装置(专利产品)

Technical paramete技术参数
Width of processed material (mm) 工料宽度(mm)	最大Max:1220,最小Min:200	Power of feeding motor(kw) 送料电机功率(kw)	1.5(able to extend to可增容至3)
Thickness of processed roughcast(mm) 加工毛坯板厚度(mm)	最大Max:60最小Min:5	Total power of installed motor(kw) 装用电机总功率(kw)	20(able to extend to可增容至40)
Min Processing length(mm) 加工最小长度(mm)	600	Feeding speed(m/min) 送料速度(m/min)	0-12
Spindle diameter(mm) 主轴直径(mm)	85	Pair number/ number of feeding roller 送料棍组数/条数	7(front 4 back 3)/14
Spindle speed (r/min) 主轴转速(r/min)	2600	Outer diameter of scrap pipe(mm) 排屑管外径(mm)	150
Saw blade diameter(mm) 锯片直径(mm)	255	Overall dimensions(mm) 外形尺寸(mm)	2900×1800×1400
Max Number of saw blades(pcs) 锯片安装最大数量(个)	60	Weight (kg) 机床重量(kg)	2300
Power of spindle motor(kw) 主轴电机功率(kw)	18( able to extend to可增容至37)
