产品描述

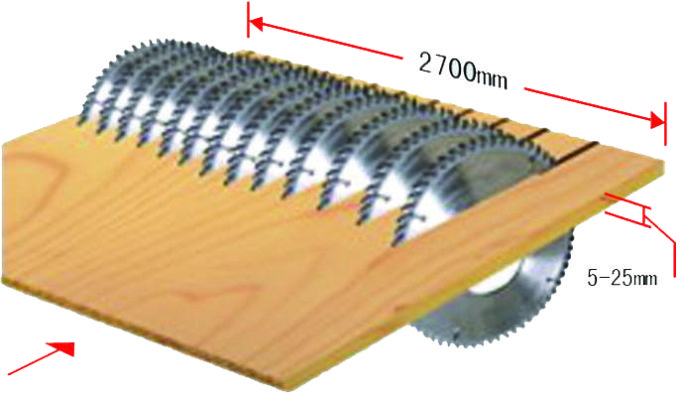

It is provided with a spindle for lower sawing, a fully-enclosed protective cover and an electronic positioning rule, Realize manual lifting of spindle and electric lifting of pressing frame.
主轴为下锯,带全封闭式晹护罩;手动升降主轴,电动升降压架结构,带电子定位尺结构。
Application:
It is used for cutting, grooving or strip cutting of density boards, composite boards and non-wood fillers
适应范围:
密度板,复合板,非木质填充林料开料开坑槽或开条。
| Technical Parameter 技术参数 | |||
|---|---|---|---|
| Width of processed material(mm) 加工料宽度(mm) |
最大Max:2700;最小Min:800 | Power of feeding motor (kw) 送料电机功率(kw) |
1.5(able to extend to可增容至3) |
| Thickness of processed roughcast(mm) 加工毛坯板厚度(mm) |
最大Max:30;最小Min:5 | Total power of installed motor(kw) 装用电机总功率(kwM) |
12.5(able to extend to可增容至25) |
| Min. Processing length(mm) 加工最小长度(mm) |
800 | Feeding speed(m/min) 送料速度(m/min) |
0-12 |
| Spindle diameter(mm) 主轴直径(mm) |
100 | Pair number number of feeding roller 送料棍组数/条数 |
6/12 |
| Spindle speed(r/min) 主轴转速(r/min) |
2600 | Outer diameter of scrap pipe(mm) 排屑管外径(mm) |
150 |
| Saw blade diameter(mm) 锯片直径(mm) |
180-220 | Overall dimensions(mm 外形尺寸(mm) |
2500×3700×1500 |
| Max Number of saw blades(pcs) 锯片安装最大数量(个) |
90 | Weight(kg) 机床重量(kg) |
3500 |
| Power of Saw Blade Motor(kw) 刀轴电机功率(kw) |
11(able to extend to可增容至22) | ||
